General Description:
This type of floating ball valve is characterized by the press form steel pipe body, instead of casting body, which is soft seal structure. The product structure is simple, light weight, and the price is cheap. Nowadays it is widely used in heating systems.

Design Standard:
Basic Design: BS 5351, API 608, EN 1983 (DIN 3357)
Face to Face (End to End): ANSI B16.10, EN 558-1 GR.27 / 28
End Connection: ANSI B16.5, EN 1092, ASME B16.25
Test: API 598, EN 12266, BS 6755, API 607

Design Standard:
Basic Design: BS 5351
Face to Face (End to End): ANSI B16.10, EN 558-1
End Connection: ANSI B16.5, B16.11, B1.20.1
Test: API 598, BS 6755, API 607

Products Range:
Size: 1/2″ ~ 4″
Size: 1/2″ ~ 4″; DN15 – DN100
Rating: ANSI 800lb ~ 2500lb; 1000 WOG ~ 3000 WOG
Body Materials: Carbon steel (A105, LF2), Stainless steel (F304, F316, F321, F51, F53)
Trim (Ball) : A105+ENP, 13Cr, F304, F316
Seat: PTFE, RPTFE, TFM1600, DEVLON, MOLON, Metal/Metal, NYLON, PEEK, VITON
End Connection: S.W. (Socket Welded) or NPT.
Operation: Manual / Lever, Gear, Pneumatic Actuator, Electric Actuator

General Description:
Cast steel floating ball valves are normally 2-PC split body and side entry. FLOWTEK offers 3 main type: Conventional design covers working temperature -46℃~200℃; Cryogenic design covers working temperature -196℃ ~ -46℃ and High performance design covers working temperature 200℃ ~ 500℃. All can be fire safe test design.

Design Standard:
Basic Design: BS 5351, API 608, EN 1983 (DIN 3357)
Face to Face (End to End): ANSI B16.10, EN 558-1 GR.27 / 28
End Connection: ANSI B16.5, EN 1092
Test: API 598, EN 12266, BS 6755, API 607

General Description:
This type of floating ball valve is designed and manufactured as per DIN standard, which is short pattern(F4), 2-pc split body and side entry.

Products Range:
Size: 1/2″ ~ 8″
Rating: ANSI 150lb, 300lb; PN 16, PN 25, PN 40
Body Materials: Carbon steel, Stainless steel
Trim: A105+ENP, 13Cr, F304, F316, F51, F53
Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL
Operation: Lever, Gear, Pneumatic operator

General Description:
Flowtek’s metal seated floating ball valve can be used in several working service, such as solid particle, high temperature, high pressure, corrosion service etc. which are fire safe designed according to API 607 and API 6FA. Working temperature can be -196℃~ 600℃.

Design Standard:
Basic Design: BS 5351, API6D, API 608
Face to Face (End to End): ANSI B16.10
End Connection: ANSI B16.5, B16.25
Test: API 598, BS 6755, API 607

General description:
Three-way ball valve is a double seats structure, can also to be made as four seats structure in case of customer’s requirement.Three – way ball valves are available in T type or L – type. The T – shape can make three orthogonal pipelines connected with each other and cut off the third channel, play the role of shunt, confluence.The L-type can only connect two orthogonal pipes, and cannot keep the third pipe connected to each other at the same time.

Design Standard:
Basic Design: BS 5351, API 608, EN 1983 (DIN 3357)
Face to Face (End to End): ANSI B16.10, EN 558-1 GR.27 / 28
End Connection: ANSI B16.5, EN 1092
Test: API 598, EN 12266, BS 6755, API 607

General Description:

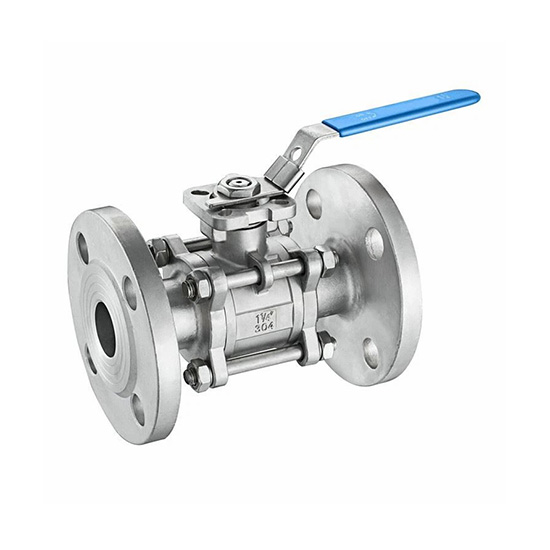

This kind of floating ball valve featuring cast / forged steel split body side entry design (optional 1-pc, 2-pc or 3-pc body). Specially designed for high pressure service so as to replace traditional trunnion mounted design to save cost. Upon special request, this series of valve can also designed to have Cryogenic or High temperature service.

Design Standard:
Basic Design: BS 5351
Face to Face (End to End): ANSI B16.10
End Connection: ANSI B16.5, B16.11, B1.20.1
Test: API 598, BS 6755, API 607
