General description:

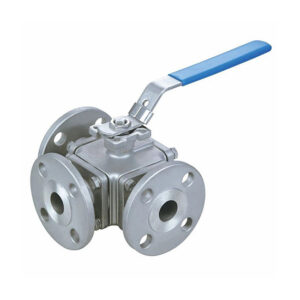

Three-way ball valve is a double seats structure, can also to be made as four seats structure in case of customer’s requirement.Three – way ball valves are available in T type or L – type. The T – shape can make three orthogonal pipelines connected with each other and cut off the third channel, play the role of shunt, confluence.The L-type can only connect two orthogonal pipes, and cannot keep the third pipe connected to each other at the same time.

Design Standard:
Basic Design: BS 5351, API 608, EN 1983 (DIN 3357)
Face to Face (End to End): ANSI B16.10, EN 558-1 GR.27 / 28
End Connection: ANSI B16.5, EN 1092
Test: API 598, EN 12266, BS 6755, API 607

Design Feature:
Product have full port or Reduce port and can optional locking device,ensure TA-Luft Low emission control and ISO 5211 top flange (long neck type is optional)，The product also can Anti-static and Blowout-proof stem ，and have fire safe design.

Application:
Can be applied to the following products: oil refineries, pharmaceuticals, chemicals, petrochemicals and power stations.
