General Description:

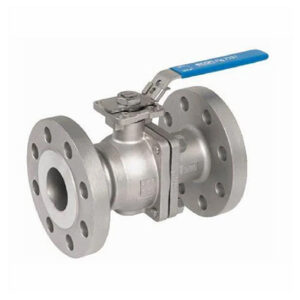

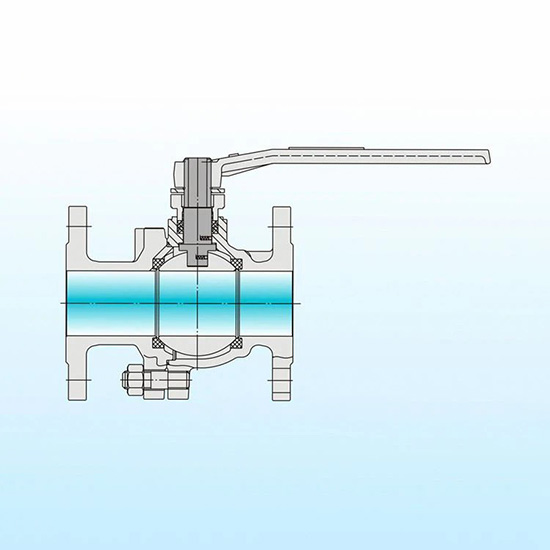

Cast steel floating ball valves are normally 2-PC split body and side entry. FLOWTEK offers 3 main type: Conventional design covers working temperature -46℃~200℃; Cryogenic design covers working temperature -196℃ ~ -46℃ and High performance design covers working temperature 200℃ ~ 500℃. All can be fire safe test design.

Design Standard:
Basic Design: BS 5351, API 608, EN 1983 (DIN 3357)
Face to Face (End to End): ANSI B16.10, EN 558-1 GR.27 / 28
End Connection: ANSI B16.5, EN 1092
Test: API 598, EN 12266, BS 6755, API 607

Products Range:
Size: 1/2″ ~ 8″
Rating: ANSI 150lb, 300lb; PN 16, PN 25, PN 40
Body Materials: Carbon steel, Stainless steel
Trim: A105+ENP, 13Cr, F304, F316, F51, F53
Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL
Operation: Lever, Gear, Pneumatic operator

Design Feature:
Full port or Reduce port
Fire safe design
Blowout-proof stem
Anti-static
TA-Luft Low emission control
ISO 5211 top flange (long neck type is optional)
Optional locking device

Application:
Refinery
Chemical
Petrochemical
Power plant
Pharmaceutical
