General Description:

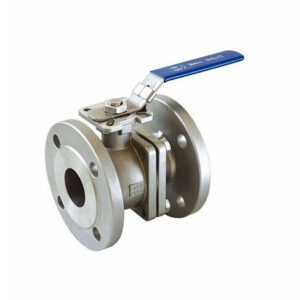

This type of floating ball valve is designed and manufactured as per DIN/EN standard, which is short pattern (DIN-F4), 2-pc split body and side entry.

Products Range:
Size: DN15-DN200
Rating: PN 16, PN 25, PN 40
Body Materials: Carbon steel (1.0619, WCB, etc), Stainless steel (1.4408, 1.4308, CF8M, CF8, etc)
Trim: A105+ENP, 13Cr, F304, F316, F51, F53, 1.4401, 1.4404, etc.
Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL
Operation: Lever, Gear, Pneumatic operator

Design Feature:
Full port or Reduce port
Fire safe design
Blowout-proof stem
Anti-static
TA-Luft Low emission control
ISO 5211 top flange (long neck type is optional)
Optional locking device

Application:
Used in chemical and petrochemical cases, but also in pharmaceuticals, oil refineries and power stations.
