General Description:

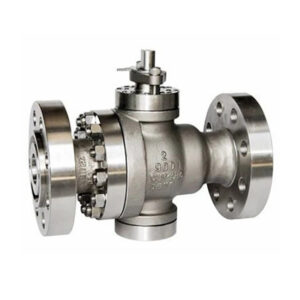

Cast steel trunnion mounted ball valve is 2-PC split body. This type of valve has advantage of less weight and cost effective. It is ideal for frequent on-off flow control in big size and high pressure pipeline.

Design Standard:
Basic Design: API 6D, EN 1983
Face-Face / End-End dimension: API 6D, ASME B16.10, EN 558-1/2
Flange / BW Ends Dimension: ASME B16.5, EN 1092-1, ASME B16.25,
Test: API 6D, EN 12266, BS 6755, API 607, API 6FA

Design Feature:
The product adopts three-proof technology: fireproof design, anti-static and anti-spray rod; it is characterized by full port or reduced port, double blockage and bleeding, with emergency sealant injection and cavity pressure self-release.

Application:
Oil & Gas processing
Refinery
Chemical
Petrochemical
Power plant
