General Description:

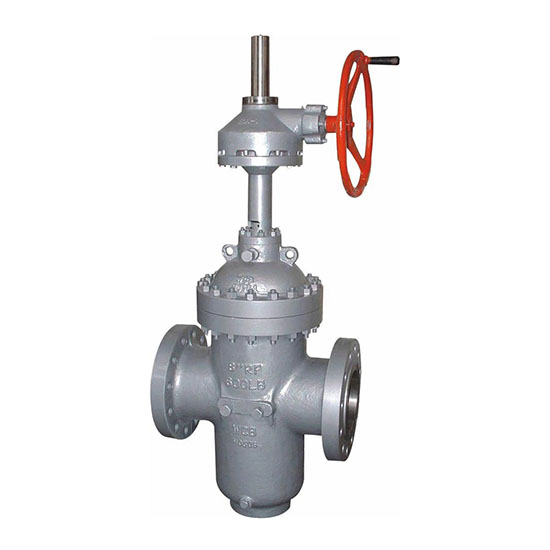

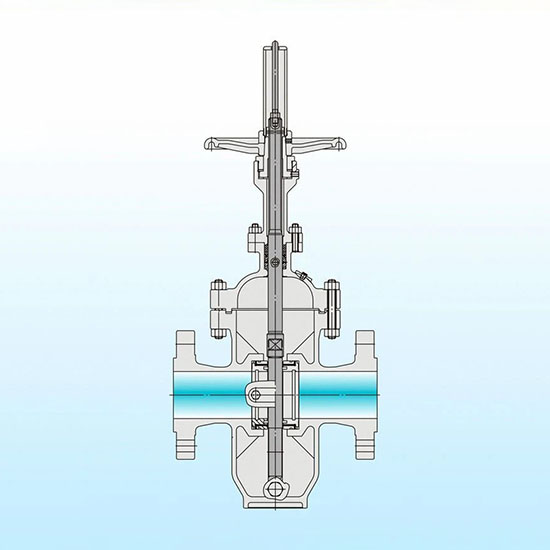

Through conduit gate valves are designed for oil & gas pipeline service. Featured with double block and bleed function, it is suitable for bi-directional flow isolation. FLOWTECK have 2 main series: Slab gate & Expanding gate type with maximum working temperature up to 500℃.

Design Standard:
Basic Design: API 6D
Face to Face (End to End): ANSI B16.10
End Connection: ANSI B16.5, MSS SP-44/ASME B16.47
Test & Inspection: API 598 / API 6D

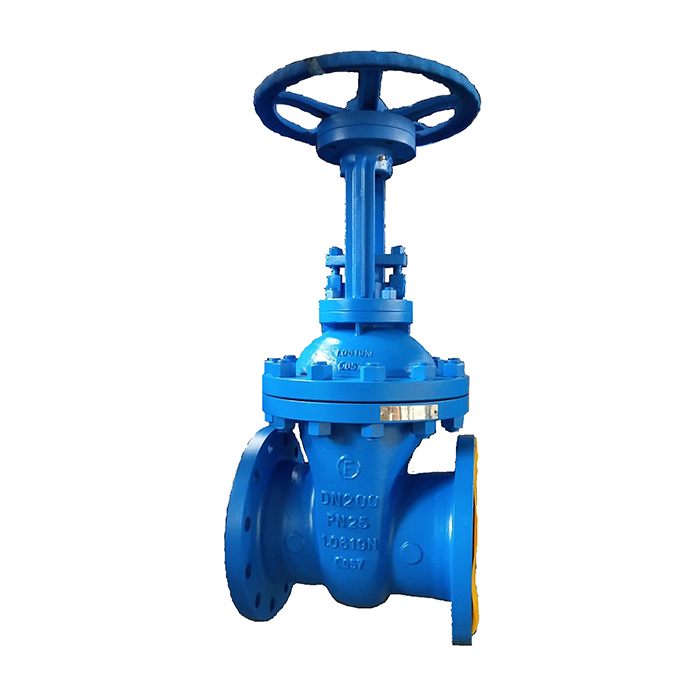

General Description:

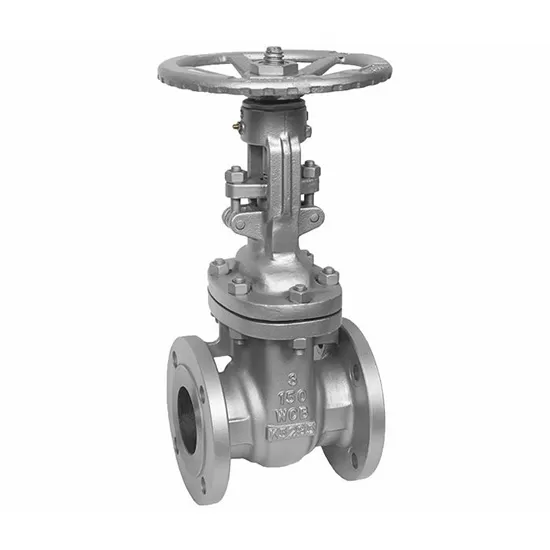

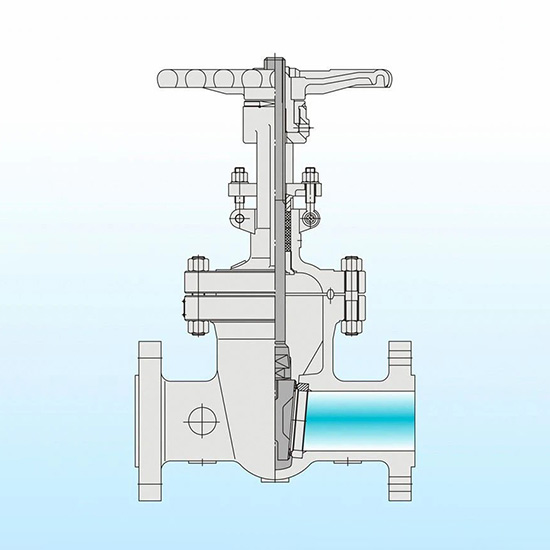

The stem of the rising stem gate valve is outside the valve body, which can intuitively judge the position of opening and closing the gate/wedge, which is also conducive to maintenance and lubrication.

Design Standard:
Basic Design: API 600/BS1414, ASME B16.34, DIN/EN 1984
Face to Face (End to End): ANSI B16.10;
EN 558-1 GR.14, 15, 26 (DIN3202 F4/F5/F7/F8);
ČSN 133045 or GOST 3706
End Connection: ANSI B16.5, MSS SP-44 / ASME B16.47, ANSI B16.25, EN 1092
Test & Inspection: API 598, EN12266

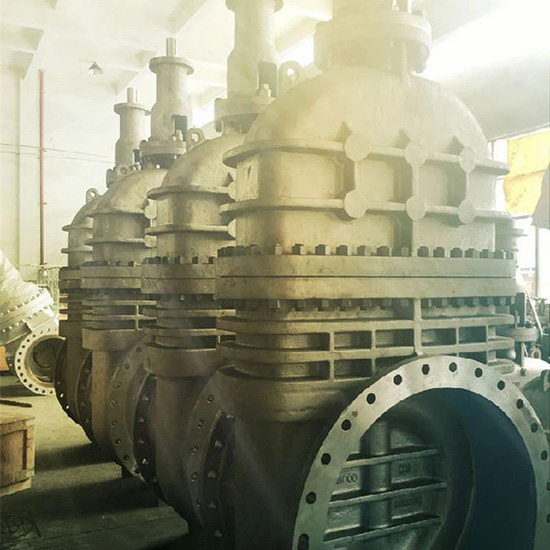

General Description:
Non-rising stem gate valve is used where vertical space is limited or underground. The stem is threaded into the gate. As the handwheel on the stem is rotated, the gate travels up or down the stem on the threads while the stem remains vertically stationary. This type of valve has a pointer indicator threaded onto the upper end of the stem to indicate the position of the gate.

Design Standard:
Basic Design: API 600/BS1414, ASME B16.34, DIN/EN 1984
Face to Face (End to End): ANSI B16.10;
EN 558-1 GR.14, 15, 26 (DIN3202 F4/F5/F7/F8);
ČSN 133045 or GOST 3706
End Connection: ANSI B16.5, MSS SP-44 / ASME B16.47, ANSI B16.25, EN 1092
Test & Inspection: API 598, EN12266

General Description:
Such kind of valves is one of Flowtek main products. We offer customer wide range of size, pressure rating and material selection; we can deliver within a short period.

Design Standard:
Basic Design: API 600/BS1414, ANSI B16.34, EN1984
Face to Face (End to End): ANSI B16.10, EN558
End Connection: ANSI B16.5, MSS SP-44/ASME B16.47, ANSI B16.25
Test & Inspection: API 598

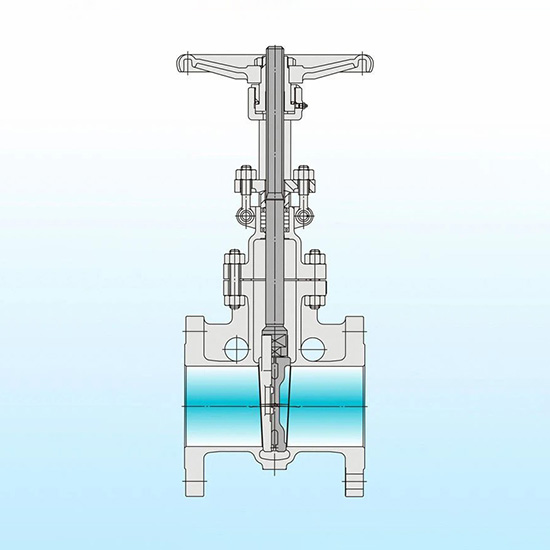

General Description:

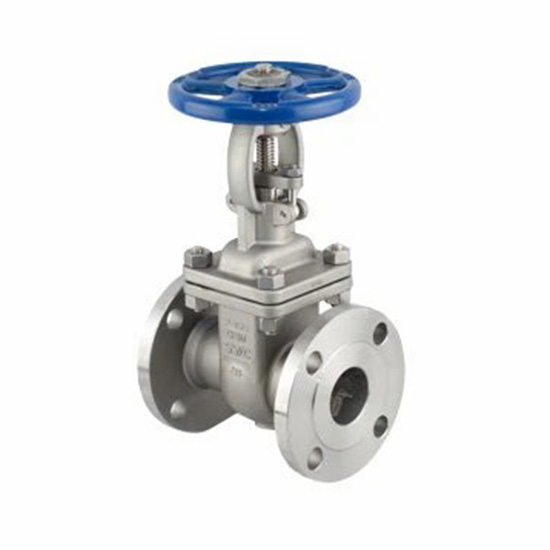

The body wall thickness of API 603 gate valve is designed in accordance with ASME B16.34. FLOWTECK’s API 603 gate valve is flexible wedge and integral / welded seat with STL overlay. The gasket and packing can be PTFE.

Design Standard:
Basic Design: API 600/BS1414, ASME B16.34, DIN/EN 1984
Face to Face (End to End): ANSI B16.10;
EN 558-1 GR.14, 15, 26 (DIN3202 F4/F5/F7/F8);
ČSN 133045 or GOST 3706
End Connection: ANSI B16.5, MSS SP-44 / ASME B16.47, ANSI B16.25, EN 1092
Test & Inspection: API 598, EN12266

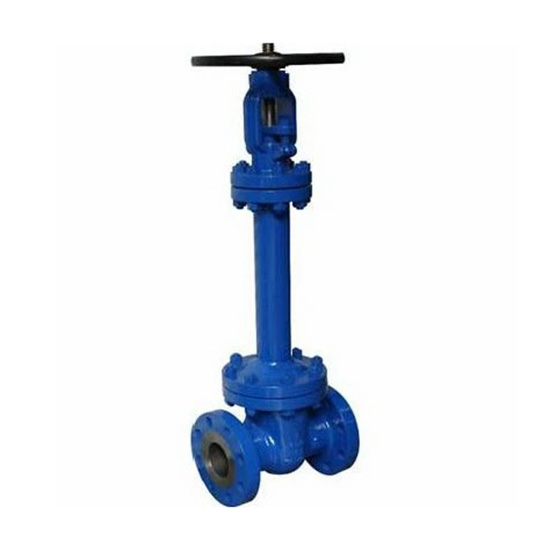

General Description:

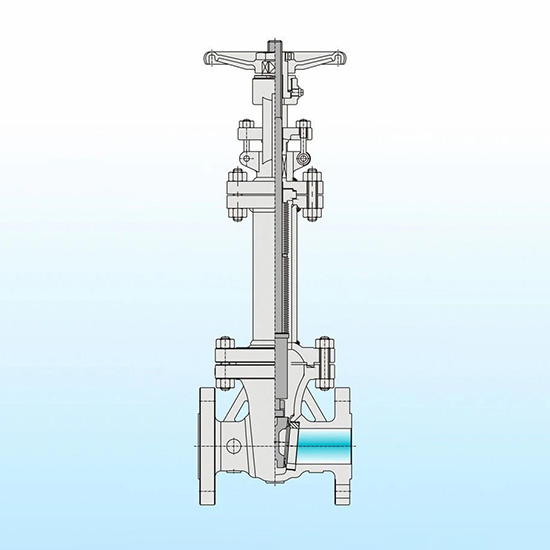

Leakage from the valve gland (stem packing) is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Standard:
Design and Manufacture: API 600, BS 1414, ASME B16.34
Face to Face Dimension: ASME B16.10, EN558-1 GR.14, 15, 26
Flange Connection Dimension: ASME B16.5, ASME B16.47 / MSS SP-44
BW Connection Dimension: ASME B16.25
Pressure-Temperature Ratings: ASME B16.34
Test and Inspection: API 598, MSS SP-61
Other: NACE MR01-75, Low Emission Test

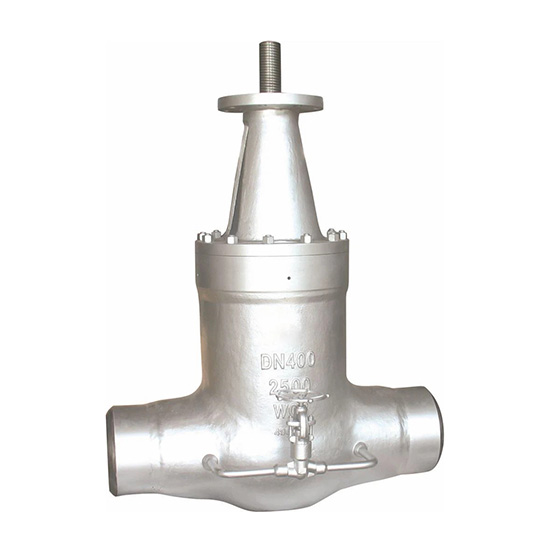

General Description:

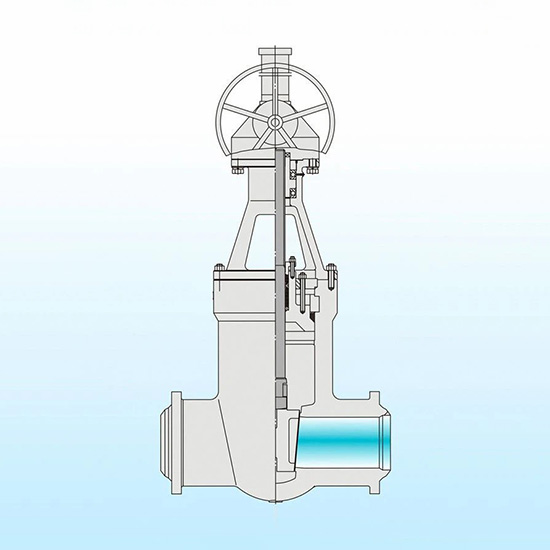

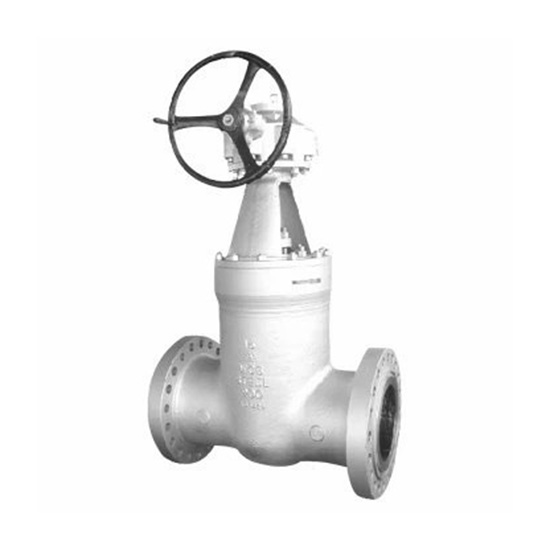

Pressure sealed gate valves are designed for high temperature, high pressure, services mainly encountered in nuclear and fossil fuel power plant. Compare with bolted bonnet valves, Flowtek’s pressure sealed gate valves are less complicated and can provide absolute excellent seal service with minimum maintenance.

Design Standard:
Basic Design: API 600/BS1414, ANSI B16.34, EN1984
Face to Face (End to End): ANSI B16.10, EN558-1
End Connection: ANSI B16.5, MSS SP-44/ASME B16.47, ANSI B16.25
Test & Inspection: API 598, EN12266
