Product Description:

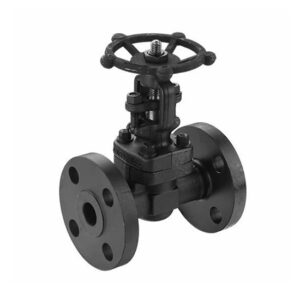

Flow-teck can provide both integral flanged type and welded flanged type. The price of the integral flanged type will be higher, but the quality will be better.

Design Features:
Solid wedge / gate
Outside screw and yoke (OS&Y)
Full port or reduce port
Bolted bonnet (BB) / welded bonnet (WB)
Pressure sealed bonnet(1500lb and above)
Bellow sealed / stem packing sealed are available

Design Standard:
Basic design: API 602
Face to Face (End to End): ASME B16.10 or manufacturer’s specification
End Connection: ASME B16.5
Test & Inspection: API 598

Products Range:
Size: 1/2＂~ 2＂
Rating: ANSI 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb
Body Materials: A105, LF2, F11, F22, F5, F304, F316, F91, F51, F53, Inconel, etc.
End connection: RF, RTJ

Application:
Petrochemical
General Industry
Steam line
Geothermal plant

FAQ:
Q: What is your sample policy?
A: We only offer free sample to our cooperated customers at present.
Q: Can you do the design for us?
A: Yes. We have a professional and experienced team to do this job.
Q: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
