General Description:

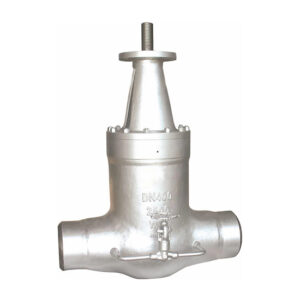

Pressure sealed gate valves are designed for high temperature, high pressure, services mainly encountered in nuclear and fossil fuel power plant. Compare with bolted bonnet valves, Flowtek’s pressure sealed gate valves are less complicated and can provide absolute excellent seal service with minimum maintenance.

Design Standard:
Basic Design: API 600/BS1414, ANSI B16.34, EN1984
Face to Face (End to End): ANSI B16.10, EN558-1
End Connection: ANSI B16.5, MSS SP-44/ASME B16.47, ANSI B16.25
Test & Inspection: API 598, EN12266

Products Range:
Size: 2″ ~ 24″
Rating: ANSI 600lb ~ 2500lb
Body Materials: Carbon Steel, Chromium Moly Alloy Steel
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, Pneumatic

Design Feature:
Flexible wedge
Optional Impact hand wheel
Stellited seating surface
Low emission control
Full guiding
Absolute bonnet joint leak proof
Optional by-pass design

Application:
Refinery
Petrochemical
Geothermal plant
Power plant
General Industry
