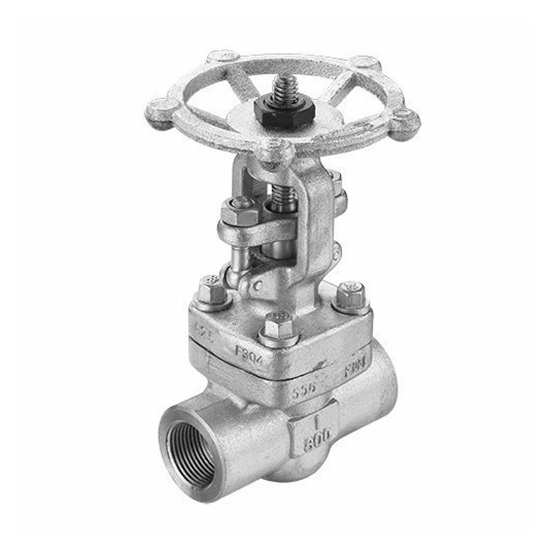

Product Description:
Flow-Teck can usually offer short delivery time and very cheap price for this kind of gate valve, except for special materials like F91, Inconel, Monel, etc.

Design Features:
Solid wedge(gate)
Outside screw and yoke (OS&Y)
Full port(FP) or reduce port(RP)
Bolted bonnet (BB) / welded bonnet (WB)
Other available Design: Pressure sealed bonnet(PSB) /Bellow sealed / stem packing sealed

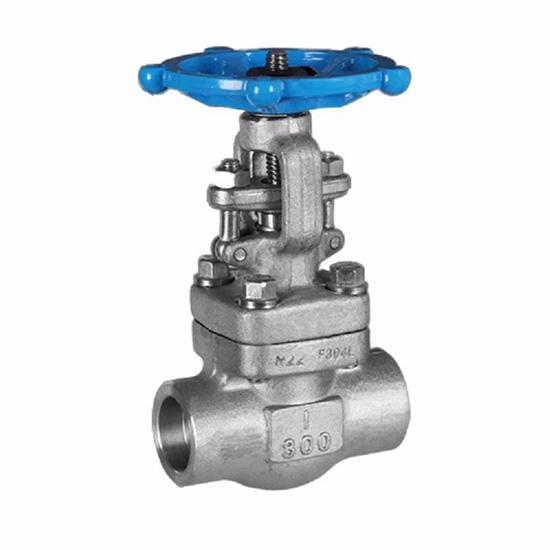

Product Description:

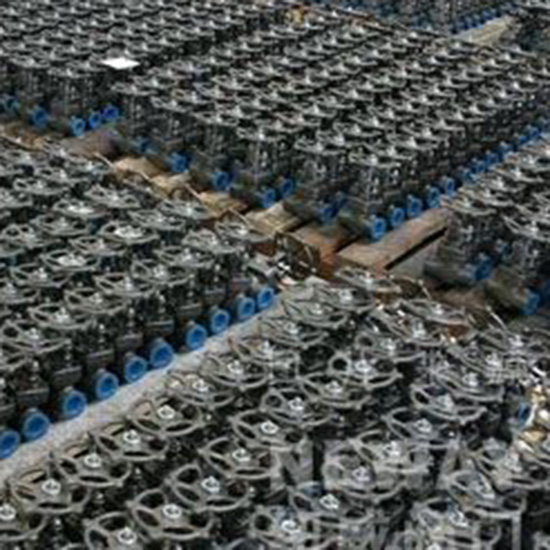

This kind of gate valve with small size is often ordered in large quantities. Flow-Teck have stocks of common materials such as carbon steel (A105). Other materials are also available upon request.

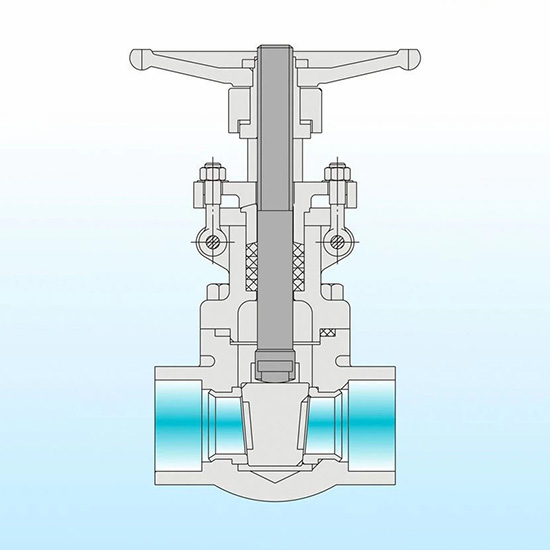

Design Features:
Solid wedge / gate
Outside screw and yoke (OS&Y)
Full port or reduce port
Bolted bonnet (BB) / welded bonnet (WB)/ pressure sealed bonnet(PSB)
Bellow sealed / stem packing sealed

Product Description:

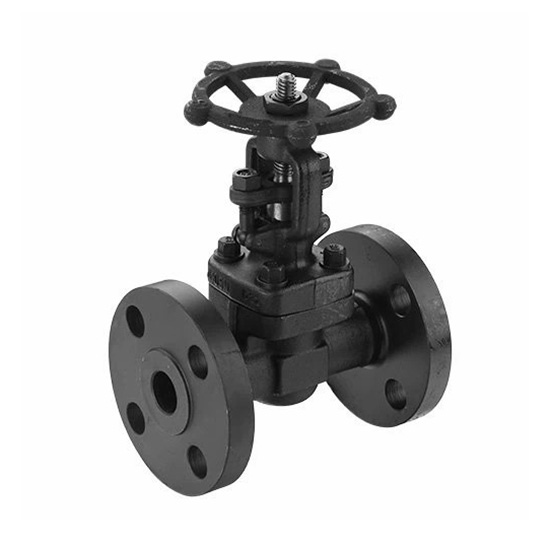

Flow-teck can provide both integral flanged type and welded flanged type. The price of the integral flanged type will be higher, but the quality will be better.

Design Features:
Solid wedge / gate
Outside screw and yoke (OS&Y)
Full port or reduce port
Bolted bonnet (BB) / welded bonnet (WB)
Pressure sealed bonnet(1500lb and above)
Bellow sealed / stem packing sealed are available

General Description:

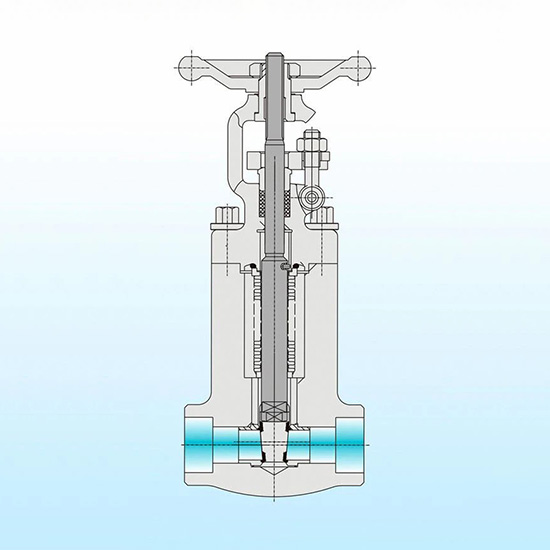

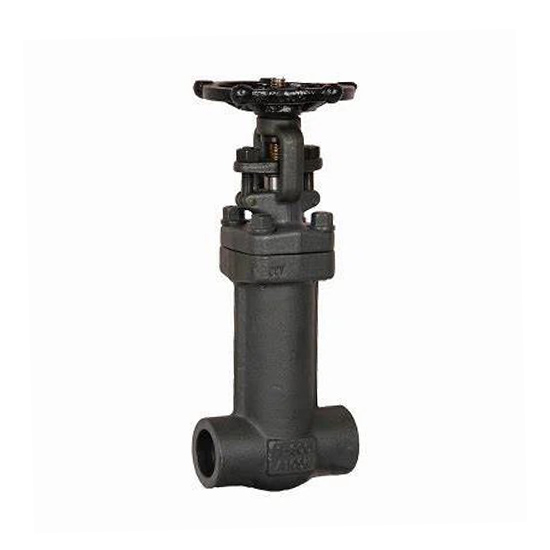

Leakage from the valve gland (stem packing) is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Standard:
Design and Manufacture: API 602, ASME B16.34, BS 5352
Face to Face Dimension: ASME B16.10, EN558 (Threaded Ends and Socket Welded ends as per manufacture’s specification)
Flange Connection Dimension: ASME B16.5
BW Connection Dimension: ASME B16.25
Threaded Ends Dimension: ASME B1.20.1
Socket Welded Ends Dimension: ASME B16.11
Pressure-Temperature Ratings: ASME B16.34
Test & Inspection: API 598
Other: NACE MR01-75, Low Emission Test
