General Description:

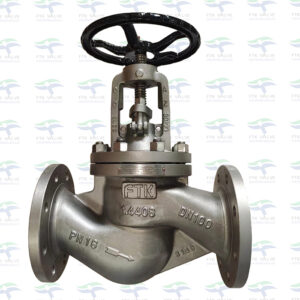

The bellows sealed globe valve uses a closed bellows that can be stretched and compressed to replace the packing, which can effectively prevent external leakage caused by packing loss. It is generally used for the transportation of highly permeable media, such as valves on hydrogen systems, as long as the bellows is not damaged, there will be no leakage.

Design Standards:
Design and Manufacture: EN 13709
Face to Face Dimension: EN558-1 GR.1
Flange Connection Dimension: EN1092-1
BW Connection Dimension: EN 12627
Test and Inspection: EN12266
Other: NACE MR01-75, Low Emission Test

Products Range:
Size: DN50 ~ DN600 PN 16/25/40; DN50 ~ DN400 PN 64/110;
Rating: PN 16 ~ PN 110
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Bellow Materials: SS304, SS316L, SS321 (1.4541), 1.4571, Inconel, Hastelloy C276
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, Pneumatic

Design Features:
Zero stem emission
Graphite stem packing secondary seal
Welded seat ring or integral body seating surface
5,000 cycles bellow without failure
Non-rising stem

Application:
Refinery
Petrochemical
Solar energy power plant
Hot oil, steam supply
General Industry

FAQ
Q: Can the products be manufactuered by customer’s requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What is your terms of payment ?
A: 30% T/T in advance, 70% balance before dispatch. If you have another question, pls feel free to contact us.
