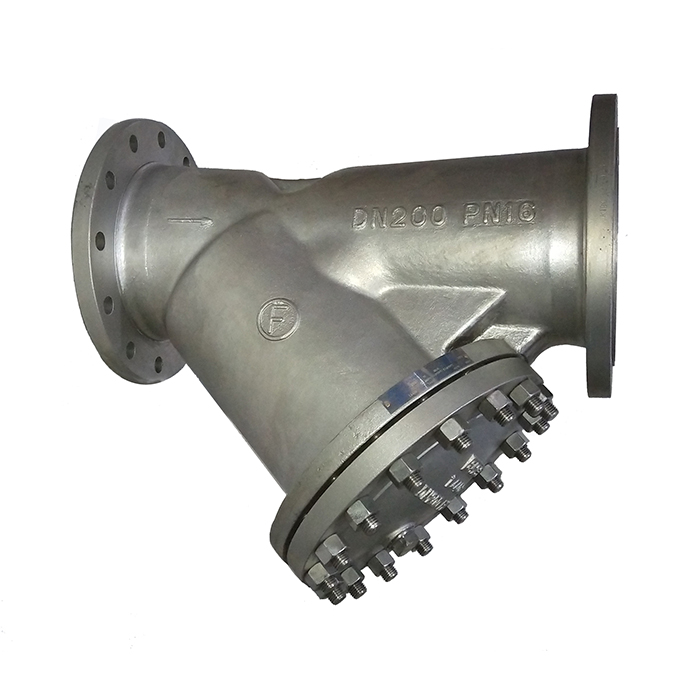

General Description:

Such product is one of FLOWTEK main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:
Basic Design: ASME B16.34, DIN 3356,
Face-Face Dimension: ASME B16.10, EN558-1 GR.1
End Connection: ASME B16.5, DIN 1092-1, EN 12627, ASME B16.25 (BW)
Test: API 598, EN 12266

Products Range:
Size: NPS 1/2″ – 24″ ; DN15 – 600 mm
Rating: ANSI 150lb – 1500lb; PN16 – PN160
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

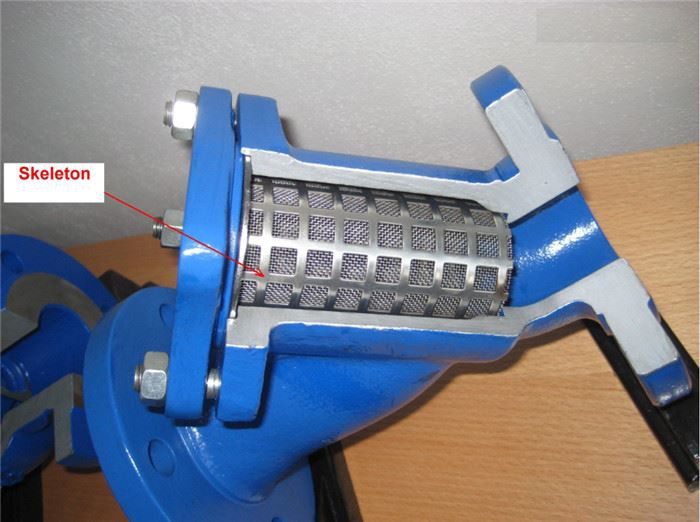

Trim (Screen): SS304, SS316, etc.
Operation: N/A

Design Feature:
Advanced structure, small flow resistance, easy to discharge

Application:
Sewage Treatment
Chemical, petrochemical
Food, pharmaceuticals
